4.6.4 多车导航实现
接下来，需要让每台机器人可以各自实现导航功能。
1.编写launch文件与参数文件
我们可以基于4.5.9 导航功能集成一节中创建的mycar_navigation2编写launch文件与参数文件。
首先，在launch目录下新建名为nav2_multi.launch.py的文件，并输入如下内容：
import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch_ros.actions import Node
from launch.actions import GroupAction
def generate_launch_description():
current_pkg = get_package_share_directory("mycar_navigation2")
ld = LaunchDescription()
car_nums = ["robot_0","robot_1","robot_2"]
bt_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params", "bt.yaml")
behavior_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params","behavior.yaml")
waypoint_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params","waypoint.yaml")
velocity_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params","velocity.yaml")
smoother_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params","smoother.yaml")
for car_num in car_nums:
planner_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params", car_num,"planner.yaml")
controller_params = os.path.join(get_package_share_directory("mycar_navigation2"),"params", car_num,"controller.yaml")
group = GroupAction([
Node(
package='nav2_planner',
executable='planner_server',
name='planner_server',
namespace=car_num,
output='screen',
parameters=[
planner_params
],
),
Node(
package='nav2_controller',
executable='controller_server',
namespace=car_num,
output='screen',
parameters=[
controller_params,
],
remappings=[('cmd_vel', 'cmd_vel_nav')]
),
Node(
package='nav2_behaviors',
executable='behavior_server',
name='behavior_server',
namespace=car_num,
output='screen',
parameters=[
behavior_params,
{'global_frame': car_num + '/odom'},
{'robot_base_frame': car_num + '/base_link'},
]
),
Node(
package='nav2_waypoint_follower',
executable='waypoint_follower',
namespace=car_num,
name='waypoint_follower',
output='screen',
parameters=[waypoint_params]
),
Node(
package='nav2_velocity_smoother',
executable='velocity_smoother',
namespace=car_num,
name='velocity_smoother',
output='screen',
respawn_delay=2.0,
parameters=[
velocity_params,
{'odom_topic': 'odom'}
],
remappings=
[('cmd_vel', 'cmd_vel_nav'), ('cmd_vel_smoothed', 'cmd_vel')]
),
Node(
package='nav2_smoother',
executable='smoother_server',
namespace=car_num,
name='smoother_server',
output='screen',
parameters=[
smoother_params,
{'robot_base_frame': car_num + '/base_link'}
],
),
Node(
package='nav2_bt_navigator',
executable='bt_navigator',
namespace=car_num,
name='bt_navigator',
output='screen',
parameters=[
bt_params,
{'robot_base_frame': car_num + '/base_link'},
{'odom_topic': 'odom'},
{"default_nav_to_pose_bt_xml": os.path.join(current_pkg,"bts","bt_planner_controller_behavior.xml")},
{"default_nav_through_poses_bt_xml": os.path.join(current_pkg,"bts","bt_planner_controller_behavior_poses.xml")}
],
),
Node(
package='nav2_lifecycle_manager',
executable='lifecycle_manager',
namespace=car_num,
name='lifecycle_manager_navigation',
output='screen',
parameters=[{'use_sim_time': True},
{'autostart': True},
{'node_names': [
'bt_navigator',
'planner_server',
'controller_server',
'behavior_server',
'waypoint_follower',
'velocity_smoother',
'smoother_server'
]}]
)
])
ld.add_action(group)
return ld
在上述文件中，通过列表设置了多机器人名称，并遍历该列表，为每一个机器人设置导航所需要读取的配置文件，再以组管理的方式设置该机器人导航所需的节点。
在params目录下还需要新建robot_0、robot_1和robot_2三个目录，分别为三辆车设置路径规划和运动控制相关文件，可以直接复制4.5.9 导航功能集成一节中的planner.yaml和controller.yaml到这三个目录，然后进行修改。
在具体的修改参数上，三者类似，其中 planner.yaml 需要重新设置robot_base_frame为当前机器人的基坐标系，map_topic设置为/map，雷达话题则设置为当前机器人的雷达话题。
2.launch集成
多车导航实现时，需要依赖于地图与多车定位功能，我们可以在一个launch文件中集成之前的多车定位launch以及当前编写的多车导航核心模块的launch，以简化导航功能的启动，在launch目录下新建一个名为bringup_multi.launch.py的launch文件，并输入如下内容：
import os
from ament_index_python.packages import get_package_share_directory
from launch import LaunchDescription
from launch.actions import IncludeLaunchDescription
from launch.launch_description_sources import PythonLaunchDescriptionSource
def generate_launch_description():
amcl_pkg = get_package_share_directory("mycar_localization")
nav2_pkg = get_package_share_directory("mycar_navigation2")
amcl_launch = IncludeLaunchDescription(
PythonLaunchDescriptionSource(os.path.join(amcl_pkg,'launch',
'mycar_loca_multi.launch.py'))
)
nav2_launch = IncludeLaunchDescription(
PythonLaunchDescriptionSource(os.path.join(nav2_pkg,'launch',
'nav2_multi.launch.py'))
)
ld = LaunchDescription()
ld.add_action(amcl_launch)
ld.add_action(nav2_launch)
return ld
3.编译
终端中进入当前工作空间，编译功能包：
colcon build --packages-select mycar_navigation2
4.执行
（1）请先调用如下指令启动仿真环境：
. install/setup.bash
ros2 launch stage_ros2 my_house_multi.launch.py
（2）然后进入当前工作空间新建终端，输入如下指令：
. install/setup.bash
ros2 launch mycar_navigation2 bringup_multi.launch.py
（3）导航实现。
请先按照4.6.2 多车定位实现一节的内容实现车辆定位功能，然后，在Tool Properties弹窗中，为2D Goal Pose下的Topic添加命名空间robot_0，然后在地图中为第一个机器人设置一个目标点，第一台机器人就可以自主导航移动了。

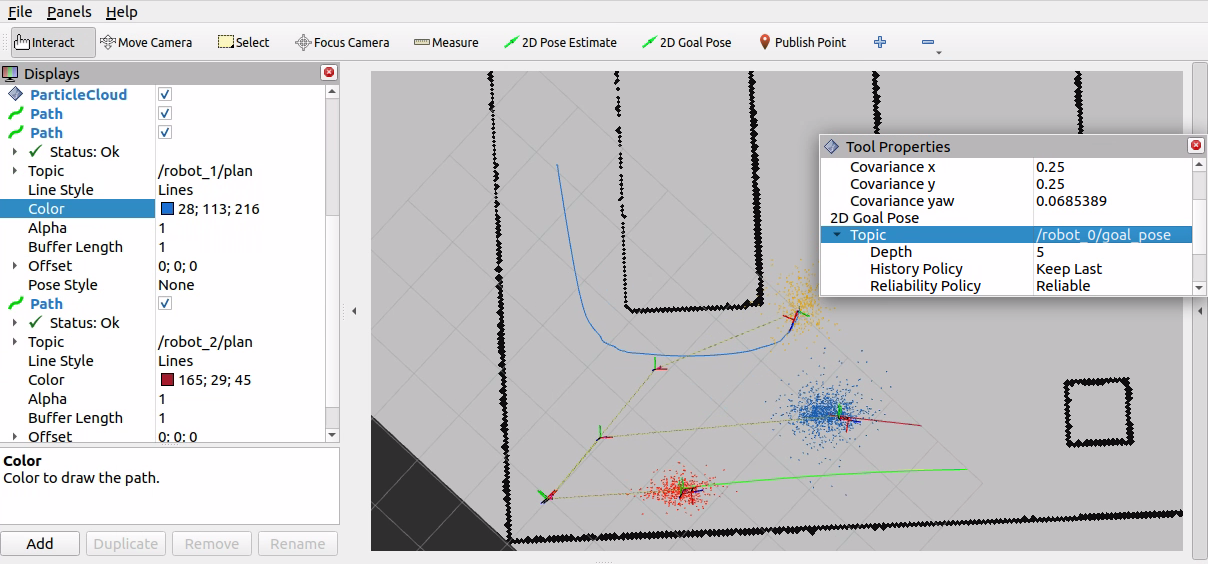

第二台和第三台机器人导航也遵循上述步骤，最终效果如下图（下图实现中还添加Path插件以显示机器人规划的路径）。
